ANNKE 5MP Lite Security System 8CH DVR With Cameras
ANNKE 5MP Lite Security System 8CH DVR With Cameras
Couldn't load pickup availability

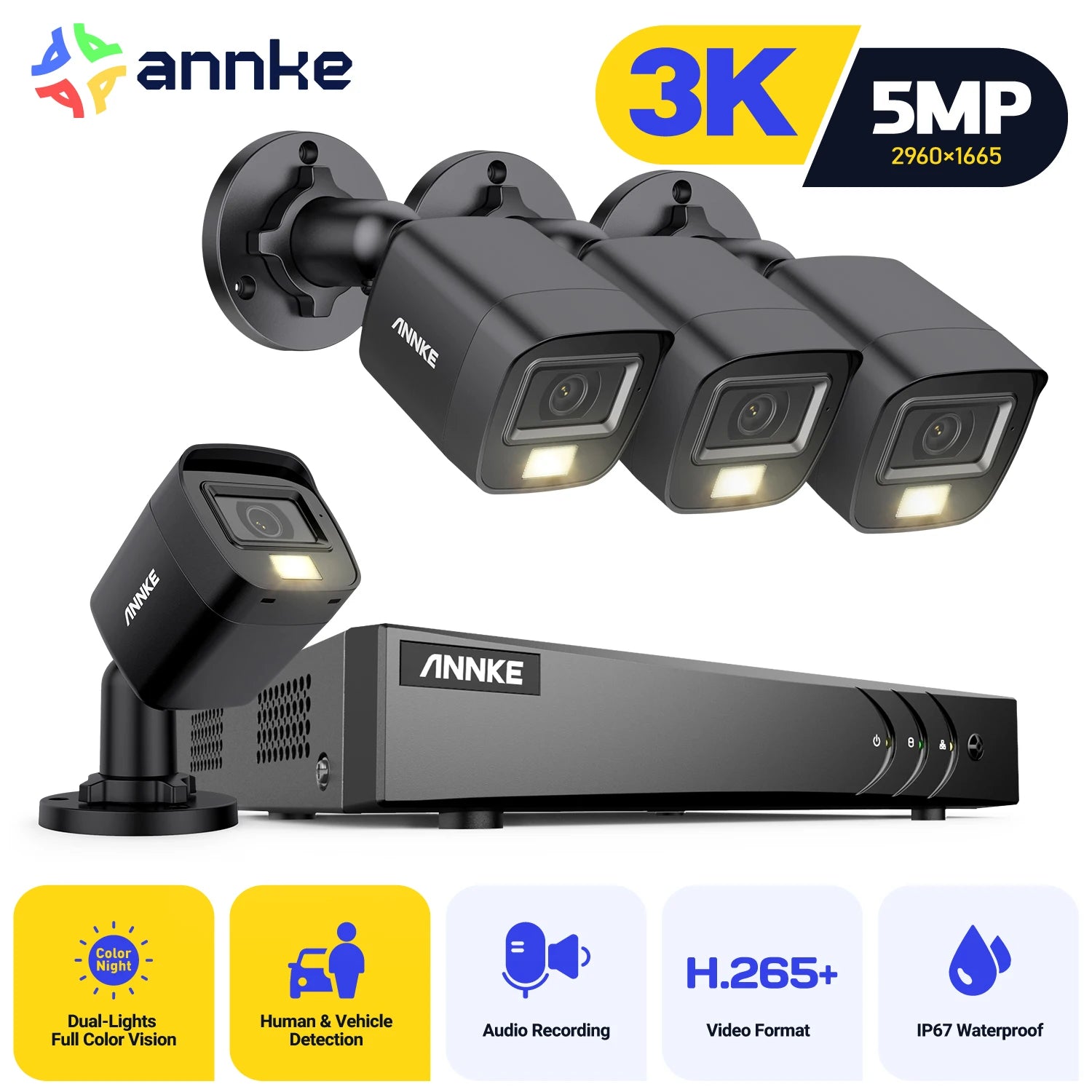

Experience 3K/5MP detail across eight channels with this ANNKE 8‑channel DVR kit and four included cameras.
- Up to 3K high-definition live viewing and 3K Lite recording, with Advanced H.265+ Video Compression to save storage and bandwidth.

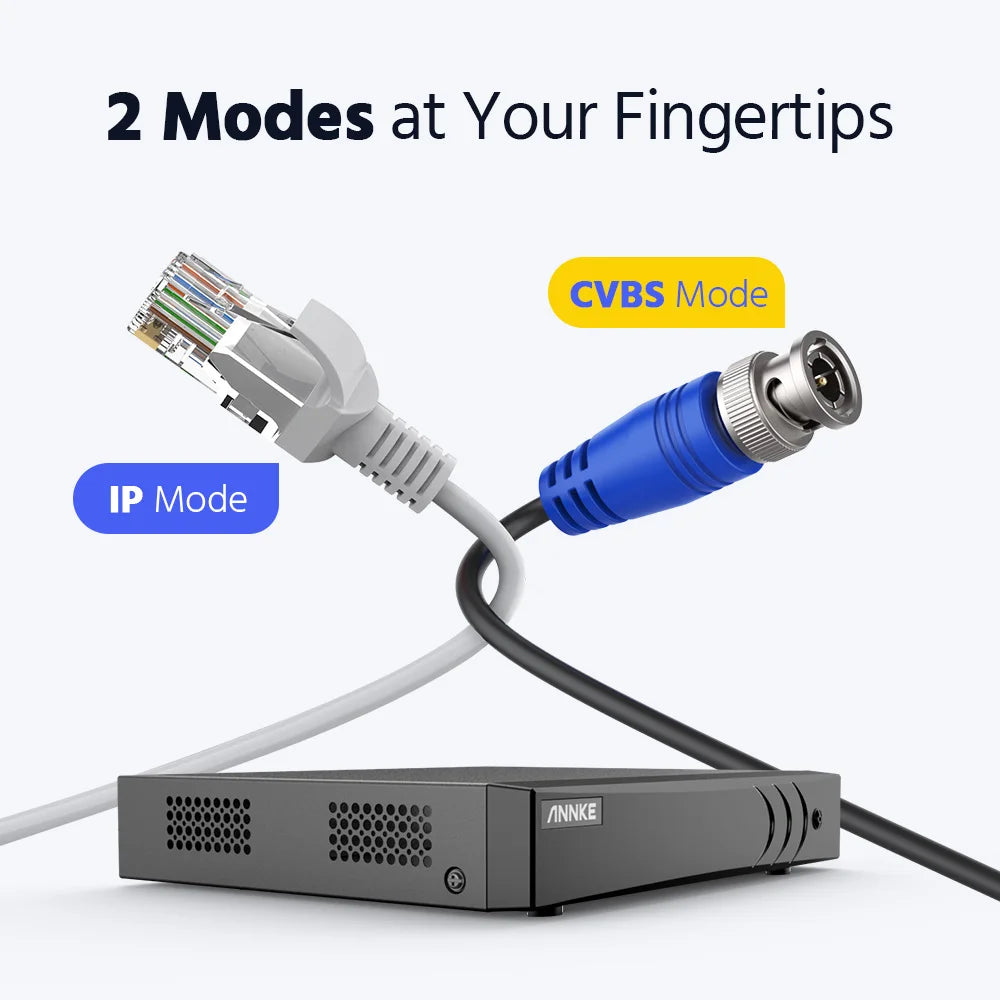

- 8‑channel DVR with 4 cameras included; 5‑in‑1 input (TVI/AHD/CVI/CVBS/IPC) plus 2 IP channels (up to 12 total in IP enhanced mode); HDMI/VGA outputs up to 1080P; HDD support up to 10 TB.

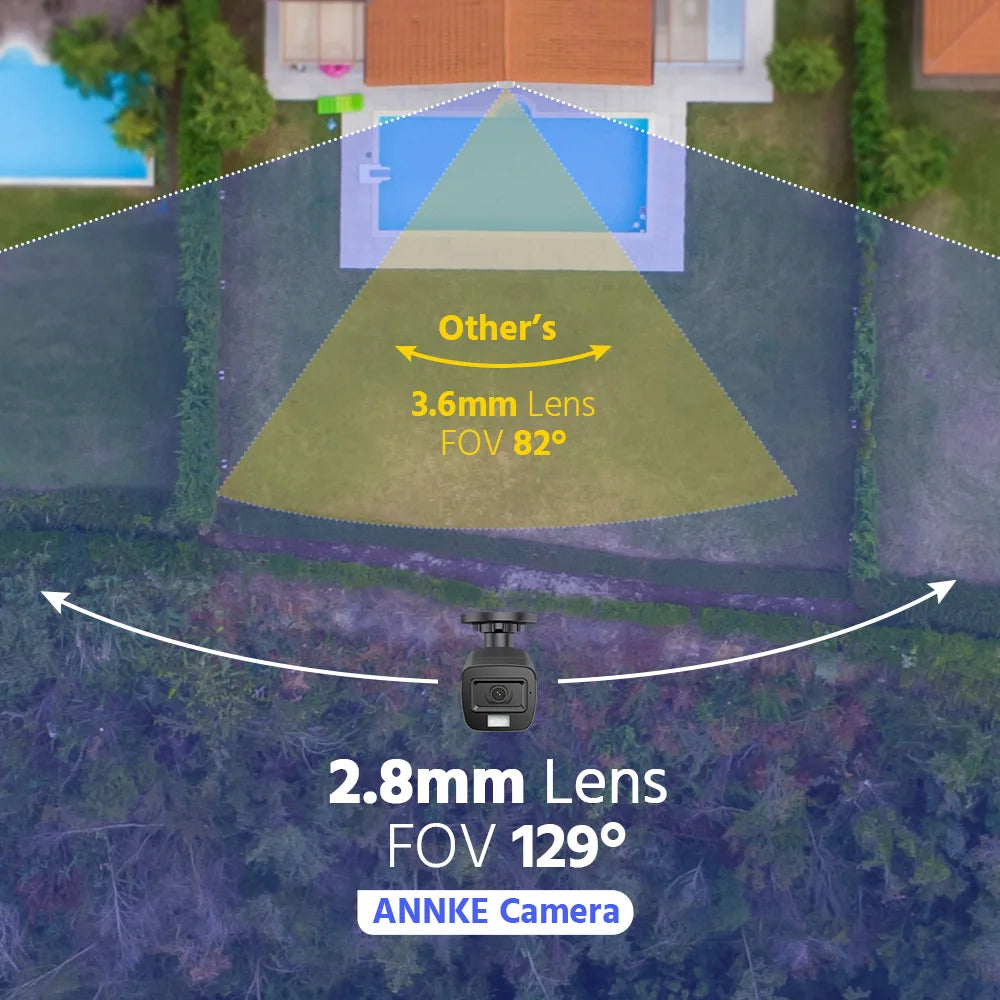

- Cameras deliver 3K UHD 2960×1665 with a 2.8 mm fixed focal lens (F1.2); IP67 weatherproof; IR up to 25 m, white light up to 20 m; smart dual-light switches to color when motion is detected.
- Motion Detection 2.0 analyzes humans and vehicles for true alerts; remote monitoring on iPhone/iPad/Android; quick search by object or event type; audio via coaxial cable.
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
2-ch |
|
Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 2 EXIR |
|
Supplement Light Range |
IR: Up to 25 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Plastic |
Color |
Black |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") |
|
Weight |
Approx. 155 g (0.34 lb.) |
|
