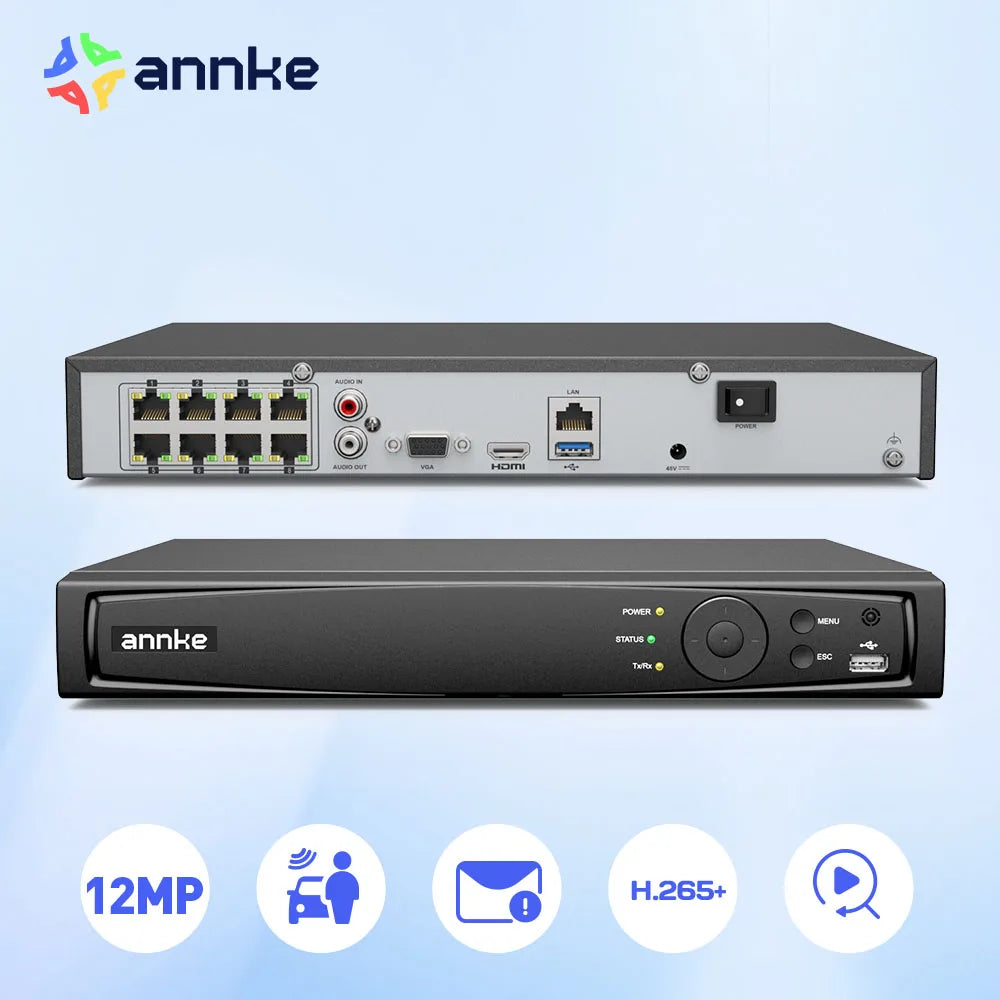

Annke 8CH 12MP PoE NVR 4K H.265 Plus Video Recorder
Annke 8CH 12MP PoE NVR 4K H.265 Plus Video Recorder
Couldn't load pickup availability
Capture every detail with your Annke 8CH 12MP PoE NVR, delivering 4K HDMI output and advanced H.265+ compression for efficient, reliable surveillance.
- Connect up to 8 IP cameras with built-in PoE inputs so you can run fewer cables and manage everything from a single NVR.
- You can record and playback up to 12MP (4096 X 3072) @ 30fps, and output HDMI up to 4K (40960 × 2160) for sharp detail.
- You get efficient bandwidth and storage with Advanced H.265+ compression, and flexible playback with decoding for H.264+/H.264/H.265/H.265+.

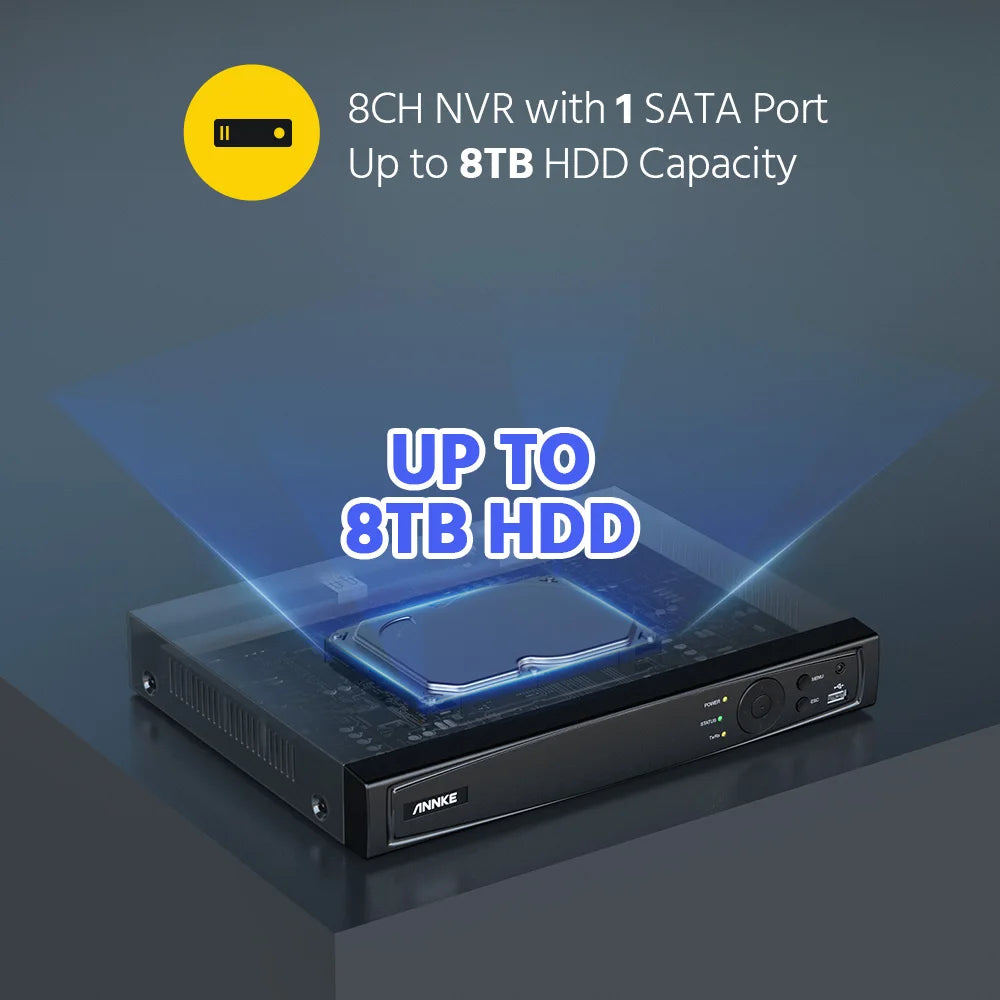

- You can expand storage up to 8 TB via a single SATA interface, powered by DC 48 V, with remote viewing on iPhone, iPad, and Android.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
